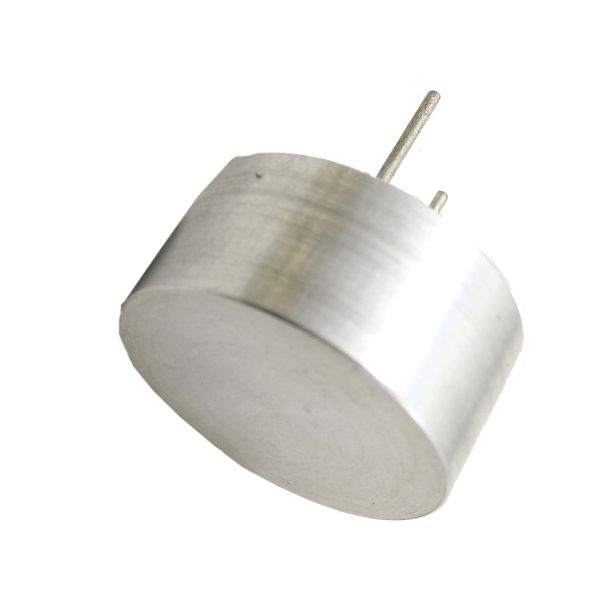

High Dependability Ultrasonic Sensor Withstand Harsh Environmental Conditions

Name: High Dependability Ultrasonic Sensor Withstand Harsh Environmental Conditions
Brand: YUJIE
Price: 1 USD

Brand Name : YUJIE

Model Number : TCF 40-25 FS/SAD50

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 100 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 3~30 working days

Packaging Details : 2500pcs/carton

Theory : Ultrasonic Sensor

Description : Open type

Output : Switching Transducer

Usage : detecting distance

Housing material : Aluminum

Port : Shenzhen

Contact Now

High Dependability Ultrasonic Sensor Withstand Harsh Environmental Conditions

Decription:
High sensitivity, dependability and stability.

Able to withstand such harsh environmental conditions

as high and low temperatures, humidity, assault, vibration.

Air Ultrasonic Ceramic Transducers

T C F 40-25 FS/SAD50

Asymmetric Beam Patterns

Temperature Compensated

Specification

Transceiver

Center Frequency

Bandwidt(-6dB) F.O.M.

Transmitting sound Pressure Level

at resonant frequency;0dB re 0.0002μbar per 10Vrms at 30cm

Receiving Sensitivity

at resonant frequency 0dB=1

volt/μbar

Nominal Impedance(Ohm)

Ringing(measuerd with rubber holder as per figure on next page)

Capacitance at 1KHz ±20%

Max.Driving Voltage(pulse width 0.5ms interval 50ms)

Total Beam Angle -6dB

Operation Temperature

Storage Temperature

40.0±500hz

1.2Khz

108dB min.

-72dB min.

850

1.8ms max.

2200pF

150Vp-p

Max.85°

-30to80℃

-40to85℃

Allspecification taken typical at 25℃

Both lead pins and lead wires output are available

Temperature compensated type is optional Upon request

Model availablc:

TCF40-25FS-1	Black Al-Housing
TCF40-25FS-2	Aluminum Housing
TCF40-25FS-3	Stainless Steel - AISI 316

Dimensions:dimensions are in mm

Impedance/Phase Angle vs.Frequency

Tested under 1Vrms Oscillation Level

Sensitivity/Sound Pressure Level

Tested under 10Vrms@30cm

Application:
Remote control device for home appliance and toy.
Used for driving mosquitoe requipment.

Detecting distance

Product Tags:

16mm 40khz transducers

ultrasonic waterproof sensor

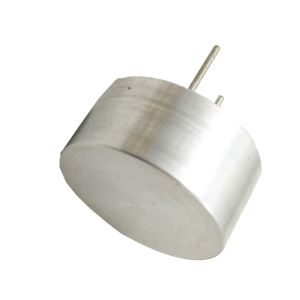

Buy cheap High Dependability Ultrasonic Sensor Withstand Harsh Environmental Conditions product
